Aluminium Sheets
Aluminium sheets, also known as aluminium plates, are the result of basic raw-form aluminium being pressed and rolled into panel form under high pressure.
Inquiry Now →

Product Description

Sheet is the most widely used form of aluminium and its versatility makes it ideal for a range of applications.

Aluminium is light and ductile, meaning it can easily be worked into new shapes. It’s also resistant to corrosion and can be recycled without losing any of its fundamental properties.


StandardJIS G3141,DIN1623,EN10130
Thickness0.15-6.0mm(Aluminum sheet)  6.0-25.0mm(Aluminum plate)
TemperO, H12, H22, H32, H14, H24, H34, H16, H26, H36, H18, H28, H38, H19, H25, H27,H111, H112,H241, H332, etc.
Surface TreatmentMill Finished, Anodized, Embossed, PVC Coated etc
AlloyApplication field
   1xxx1050Insulation, food industry, decoration, lamp, traffic signs etc.
1060Fan blade, Lamps and lanterns, Capacitor shell, Auto parts, Welding parts.
1070Capacitor, Rear panel of vehicle refrigerator, charging point, heat sink etc
1100Cooker, building material, printing, heat exchanger, bottle cap etc
 2xxx2A12 2024Aircraft structures, rivets, aviation, machinery, missile components, the card wheel hub, propeller components, aerospace parts,car parts and various other structural parts.
  3xxx3003 30043005 3105Aluminum curtain wall panel, aluminum Ceiling, Electric cooker bottom, TV LCD backboard, storage tank, curtain wall, building construction panel heat sink, billboard. Industrial floor, air conditioning, refrigerators radiators, Make-up board, Prefabricated house etc.
      5xxx5052Marine and transportation material, railway carriage's inner and outer cabinet, oil and chemical industry storage device,equipment and medical device panel etc.
5005Marine applications, bodies of boats, buses, trucks and trailer. Curtain wall panel.
5086Ship board, deck, bottom and edge panel etc.
5083Tanker, oil storage tank, drilling platform, ship board, deck, bottom, welded parts and edge panel, railway carriage 's board,automotive and aircraft panel, cooling device and automotive molding etc.
5182
5454
5754Tanker body, marine facilities, pressure container, transportation etc.
  6xxx606160836082Railway inside and outside parts, board and bed plate. Industry moldingHighly stressed applications includes Roofing construction,transportation, and marine as well as mould.
 6063Auto parts, architectural fabrication, window and door frames, aluminum furniture, electronic components as well as various consumer durable products.
  7xxx7005Truss, rod/bar and the container in transportation vehicles; Large-sized heat ex changers.
7050Molding (bottles) mode, ultrasonic plastic welding mold, golf head, shoe mold, paper and plastic molding, foam molding, lost wax mold, templates, fixtures, machinery and equipment.
7075Aerospace industry, military industry, electronic etc.

Type of Aluminum Sheet :





1000 series Representing the 1000 series aluminum plate is also called pure aluminum plate. Among all series, the 1000 series belongs to the series with the most aluminum content. The purity can reach more than 99.00%. According to the international designation principle, the aluminum content must reach more than 99.5% to be qualified products ;

2000 series aluminum plate Representing 2A16 (LY16) 2A06 (LY6) 2000 series aluminum plates are characterized by high hardness, among which the copper element content is the highest, about 3-5%. 2000 series aluminum sheets belong to aviation aluminum materials, which are not often used in conventional industries ;

3000 series aluminum plate Representative 3003 3003 3A21 mainly. It can also be called anti-rust aluminum plate. The production process of my country's 3000 series aluminum plate is relatively excellent. 3000 series aluminum plate is mainly composed of manganese element. The content is between 1.0-1.5. It is a more commonly used alloy series ;

4000 series aluminum plate The aluminum plate represented by 4A01 4000 series belongs to the series with higher silicon content. Usually the silicon content is between 4.5-6.0% ;

5000 series Represents the 5052.5005.5083.5A05 series. 5000 series aluminum plate belongs to the more commonly used alloy aluminum plate series, the main element is magnesium, and the magnesium content is between 3-5%. Also known as aluminum-magnesium alloy. The main features are low density, high tensile strength and high elongation. . It is also widely used in conventional industries. The processing technology is continuous casting and rolling, which belongs to the series of hot-rolled aluminum plates, so it can be deep-processed by oxidation ;

6000 series On behalf of 6061, it mainly contains two elements, magnesium and silicon, so it concentrates the advantages of 4000 series and 5000 series. 6061 is a cold-treated aluminum forging product, which is suitable for applications with high corrosion resistance and oxidation resistance. Good usability, excellent interface characteristics, easy coating, and good workability. Can be used on low voltage weapons and aircraft joints. General characteristics of 6061: excellent interface characteristics, easy coating, high strength, good usability, and strong corrosion resistance ;

7000 series On behalf of 7075 mainly contains zinc element. It also belongs to the aviation series. It is an aluminum-magnesium-zinc-copper alloy, a heat-treatable alloy, and a super-hard aluminum alloy with good wear resistance. The 7075 aluminum plate is stress-relieved and will not deform or warp after processing. It requires strength High-stress structural parts and mold manufacturing with high and strong corrosion resistance ;

8000 series The more commonly used is 8011. It is also used in heat sinks, most of which are aluminum foils .

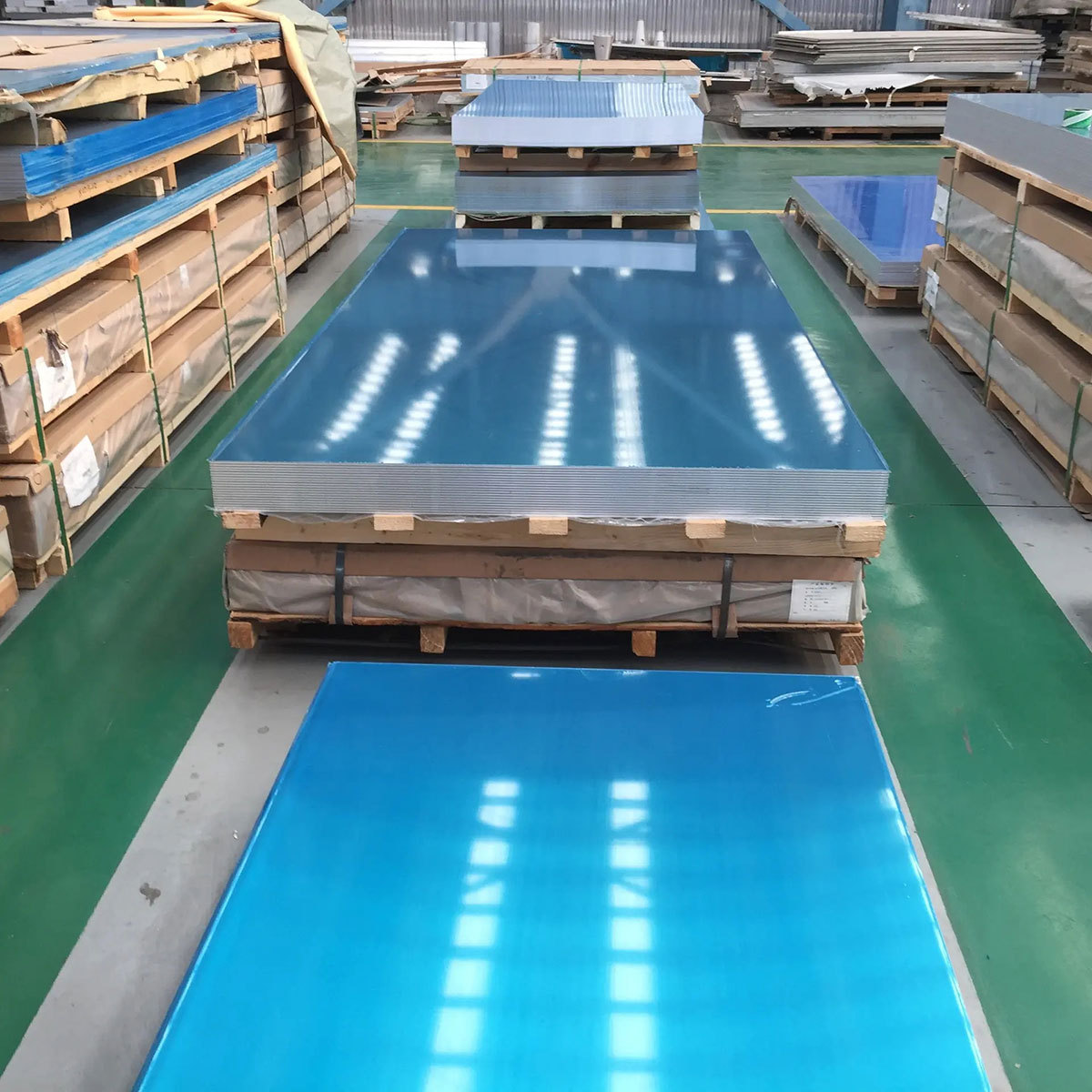

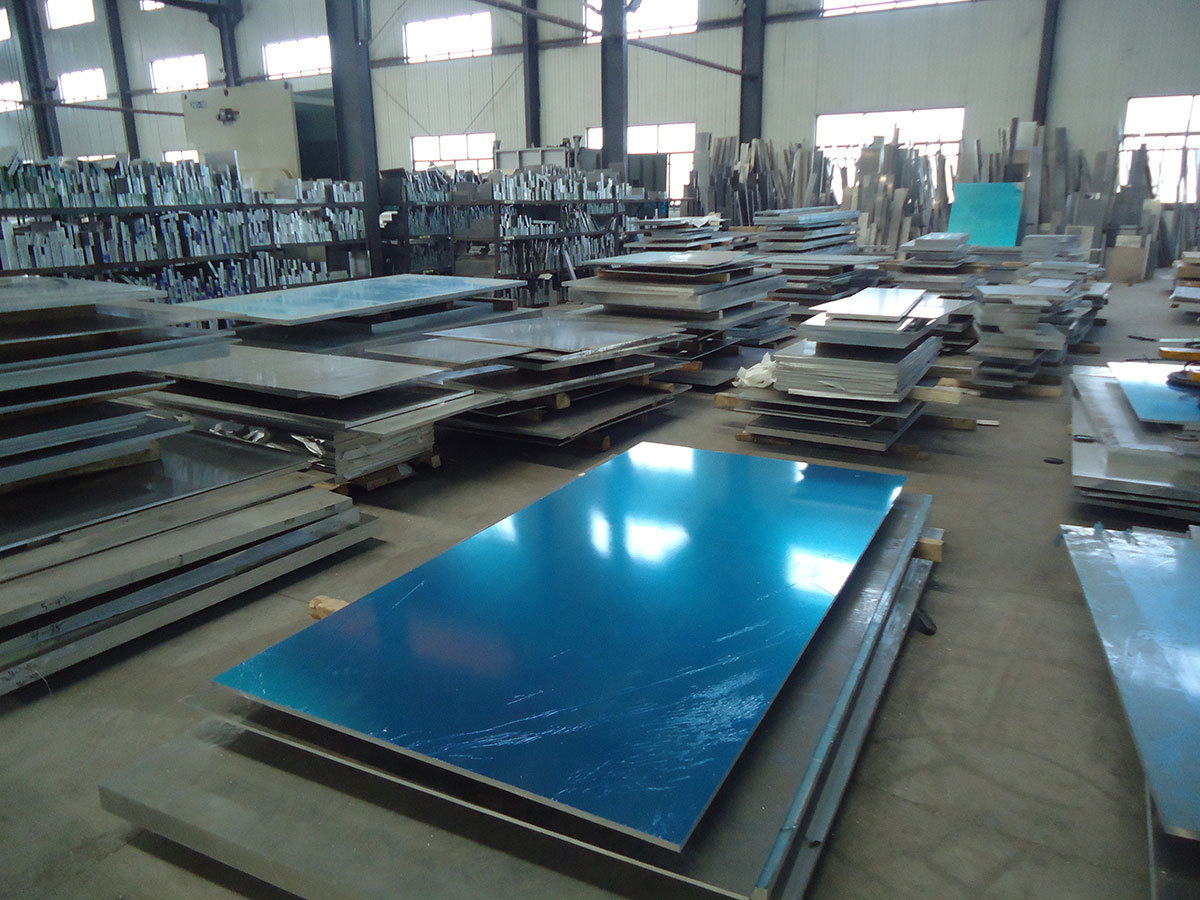

Product Display



The advantages of Aluminum Sheet :




1. Lightweight ;

2.Heavy Duty ;

3.Resist Corrosion ;

4.By a process called anodizing, whereby the aluminum surface is coated with a protective oxide, that corrosion resistance can be improved even further.

Package

Aluminium sheets are commonly used by the food and beverage industry for packaging. Aluminium is an ideal metal for canned goods as it’s malleable and allows for ease of manufacture. It’s used for both food cans and thinner, more lightweight drinks cans. One of the many advantages of using aluminium for food and drinks packaging is that it doesn’t rust. Use of aluminium in cans began in 1957.

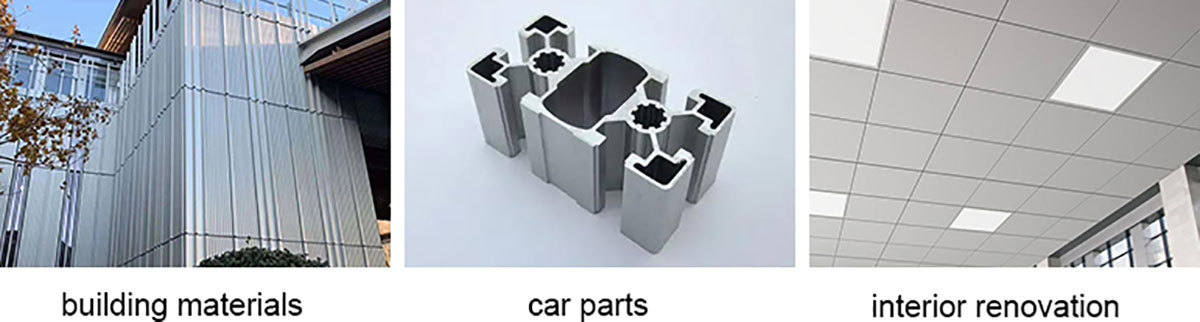

1.Construction: Aluminum sheets are often used in construction, particularly in roofing and siding applications. They are also used in the construction of gutters, flashings, and downspouts. They are also very popular for use as soffit panels ;

2.Manufacturing: Aluminum sheets are often used in the manufacturing of a variety of products, including appliances, automotive parts, and packaging materials such as cans and foil ;

3.Other applications: Aluminum sheets can also be used for a variety of other applications, including signs and displays, license plate frames, and as a protective covering for surfaces that are subject to wear and tear such as countertops .
