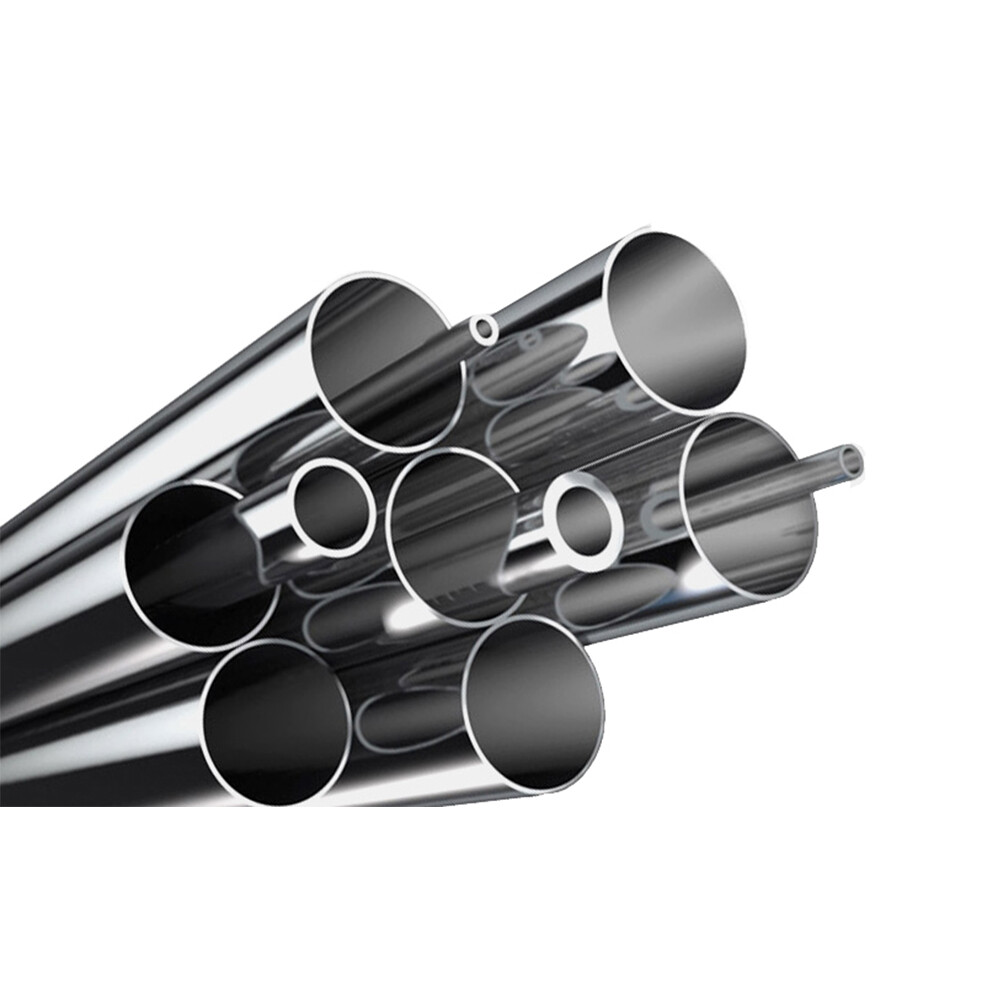

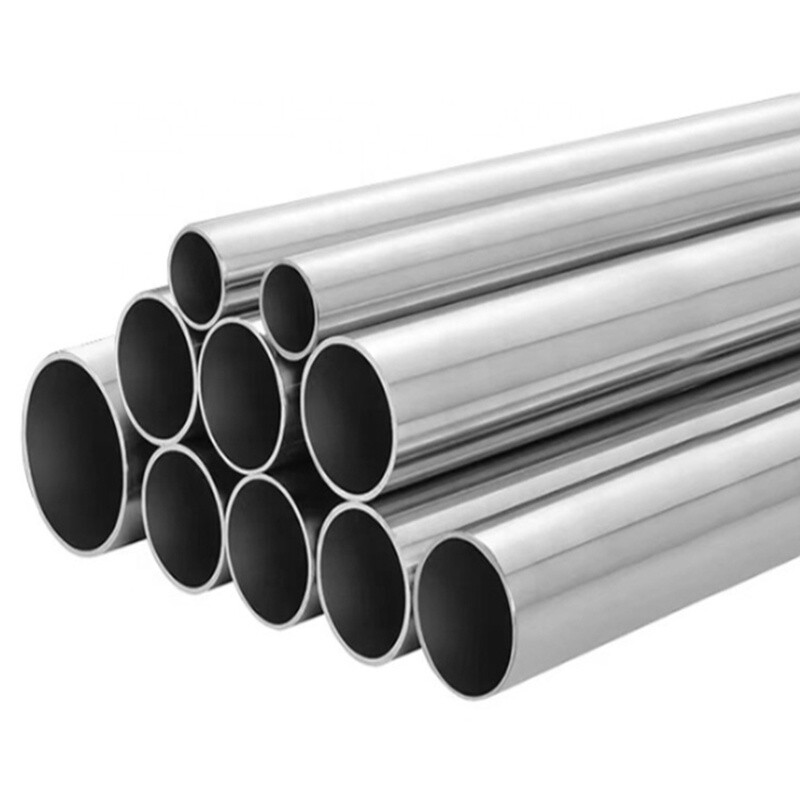

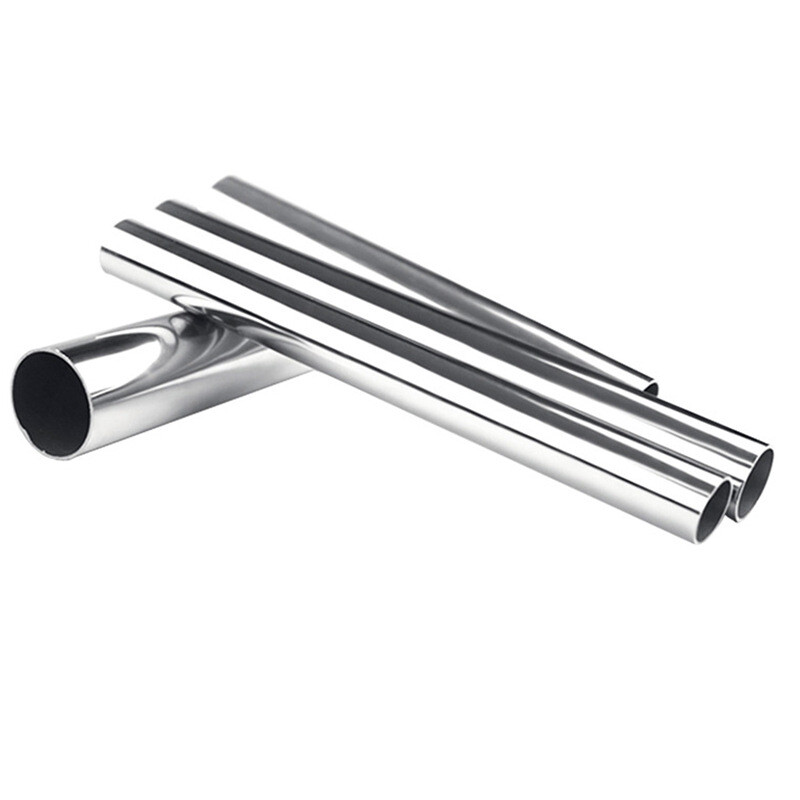

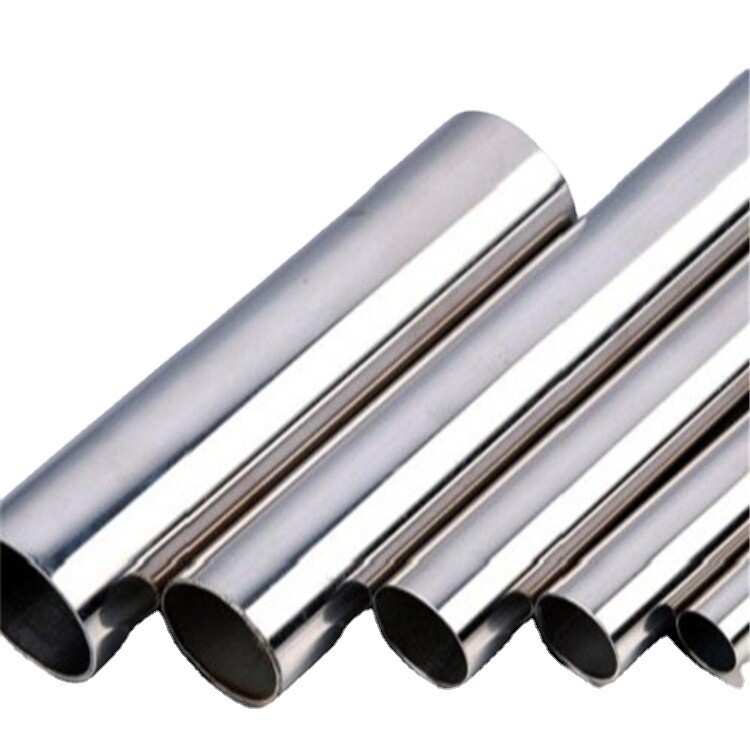

Stainless Steel Tube
Stainless steel tube is a versatile material used for structural applications. Widely used throughout numerous industrial sectors, stainless steel tubing sizes and varieties vary considerably depending on the application requirements.
Inquiry Now →

Product Description

Stainless Steel Tube is a hollow strip of round steel, which is widely used in petroleum, chemical, medical, food, light industry, mechanical instrumentation and other industrial pipelines and mechanical structural components. In addition, when the bending and torsional strength are the same, the weight is light, so it is also widely used in the manufacture of mechanical parts and engineering structures. Also used as furniture and kitchenware.


Production NameStainless Steel Tube, Stainless Steel Pipe
Production SizeOuter Diameter:6-2500 mmThickness:0.1-100 mm (Size can be customized.)Length:≤12000mm or as per customer request
Product StandardFood Grade Sanitary Tube: JIS G3447, KS D 3585, ASTM A270, EN 10357(DIN 11850), AS 1528.1
Industrial pipe: ASTM A312, EN 10217-7, GB / T 12771-2008Mechanical pipe: ASTM A554, EN 10296-2Heat exchanger pipe: ASTM A249 / ASME SA249, GB / T 24593-2009, HG 20537.2
Material Grade

Mainly201, 202, 304, 304L, 304H, 316, 316L,316Ti,2205, 330, 630, 660, 409L, 321,

 310S, 410, 416, 410S, 430, 347H, 2Cr13, 3Cr13 etc

300series:301,302,303,304,304L,309,309s,310,310S,316,316L,316Ti,317L,321,347

200series:201,202,202cu,204 400series:409,409L,410,420,430,431,439,440,441,444

Others:2205,2507,2906,330,660,630,631,17-4ph,17-7ph, S318039 904L,etc

Duplex stainless steel:S22053,S25073,S22253,S31803,S32205,S32304

Special Stainless Steel:904L,347/347H,317/317L,316Ti,254Mo

Welding Line TypeERW,Efw,Sprial Weleded,Seamless (All can be customized as customer's requirements)
SurfaceBA, 2B, 2D, 4K, 6K, 8K, NO.4, HL, SB, Embossed
AdvantageWe have stock, about 20000 tons.
CertificationISO 9001, SGS, ABS, BV
The sizes or thicknesses of stainless steel can be customized, if you need additional information,please don't hesitate to contact us at any time ;
All standard products are supplied without inter paper & PVC film. If needed, please inform ;
If your quantity is smaller than our MOQ, kindly pls contact us for inquiry accordingly, sometime we have small stock, thank you.


Surface :


图片 1.png





Surface and Application :



Surface FinishDefinitionApplication
         2BThose finished, after cold rolling, by heat treatment, pickling or other equivalent treatment and lastly by cold rolling to given appropriate luster.Medical equipment, Food industry, Construction material, Kitchen utensils.
         BAThose processed with bright heat treatment after cold rolling.Kitchen utensils, Electric equipment, Building construction.
        NO.3Those finished by polishing with No.100 to No.120 abrasives specified in JIS R6001.Kitchen utensils, Building construction.
       NO.4Those finished by polishing with No.150 to No.180 abrasives specified in JIS R6001.Kitchen utensils, Building construction, Medical equipment.
         HLThose finished polishing so as to give continuous polishing streaks by using abrasive of suitable grain size.Building Construction.
       NO.1The surface finished by heat treatment and pickling or processes corresponding there to after hot rolling.Chemical tank, pipe.

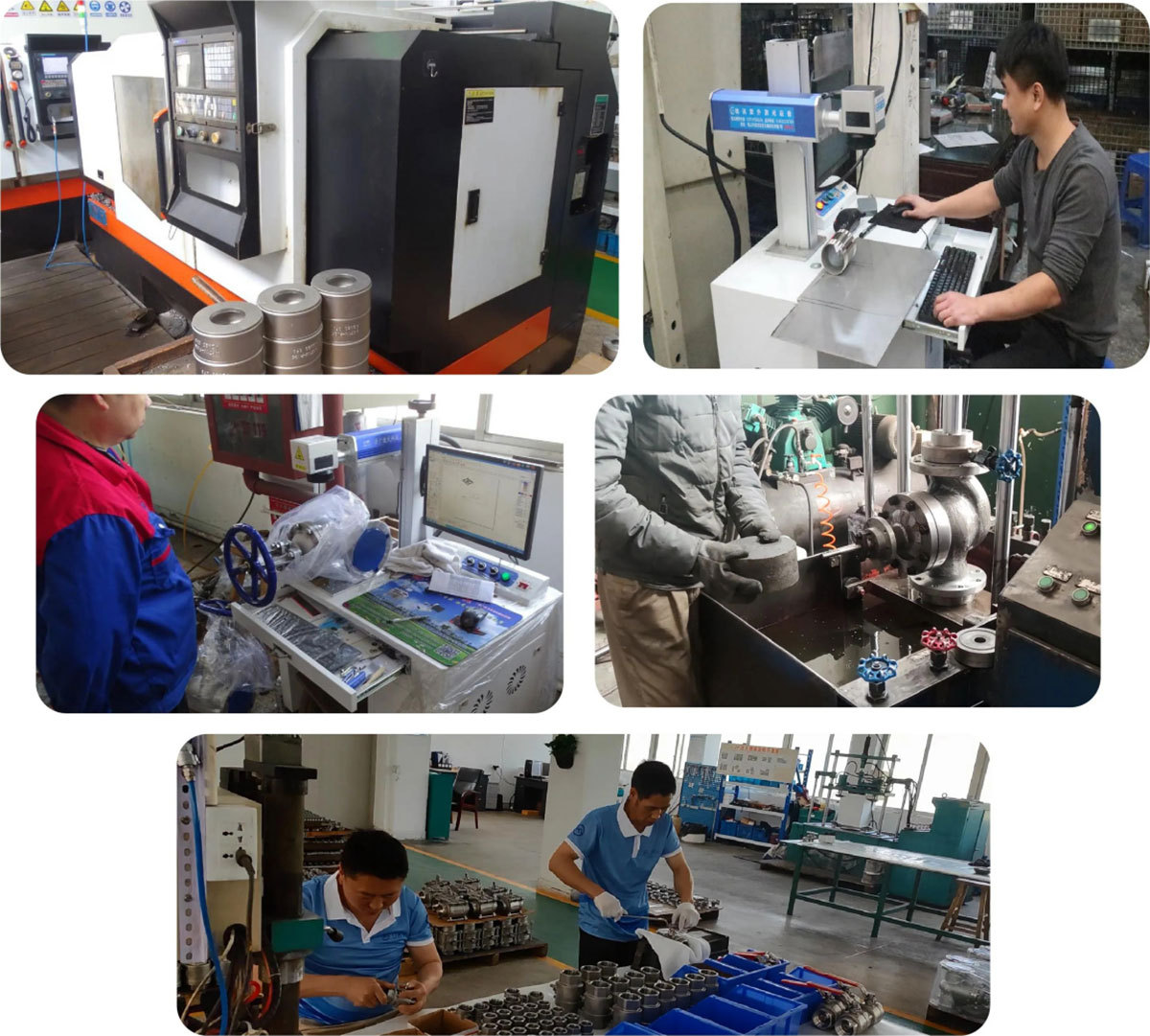

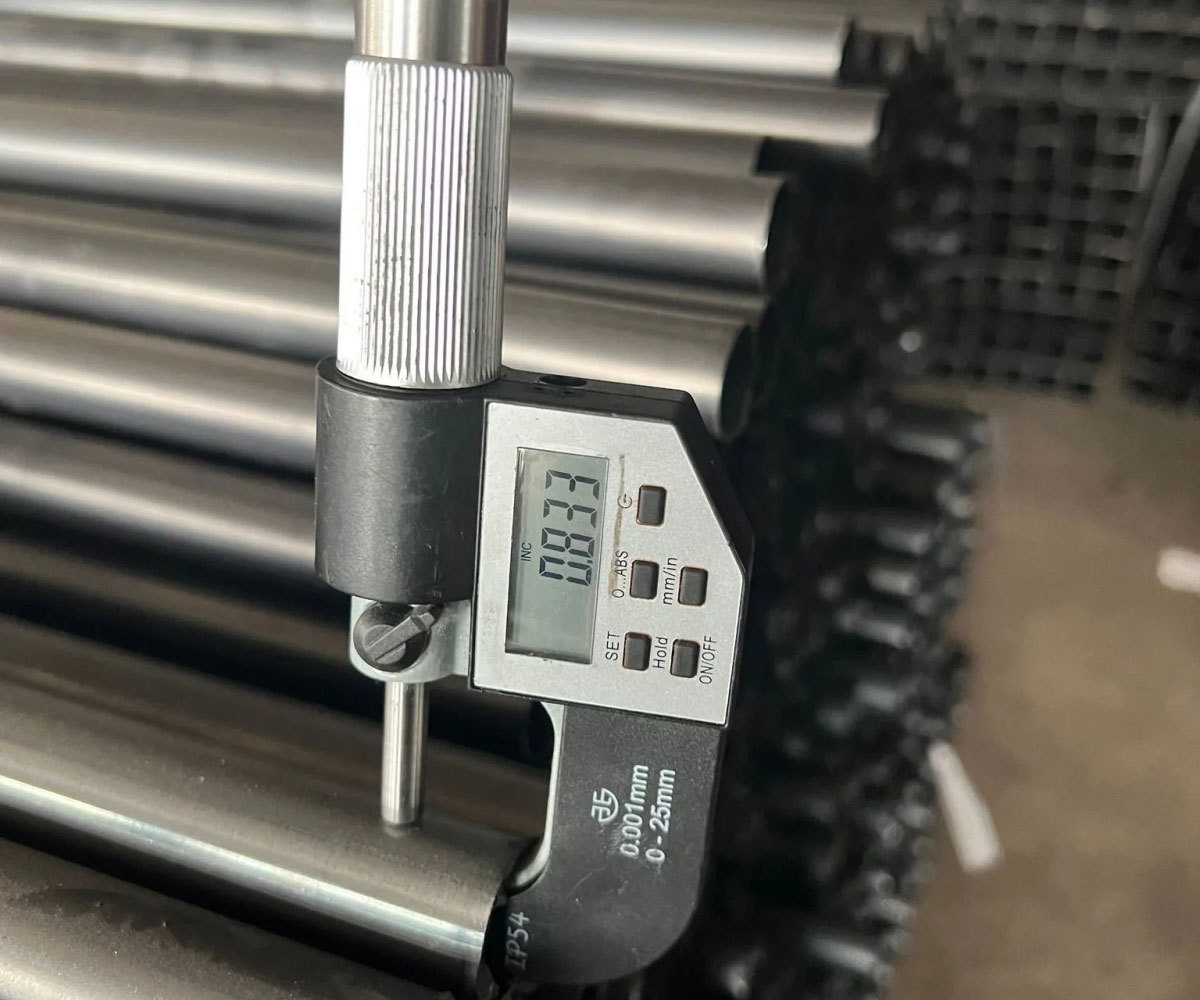

How to promise the quality ? --- Quality Inspection




Product Display

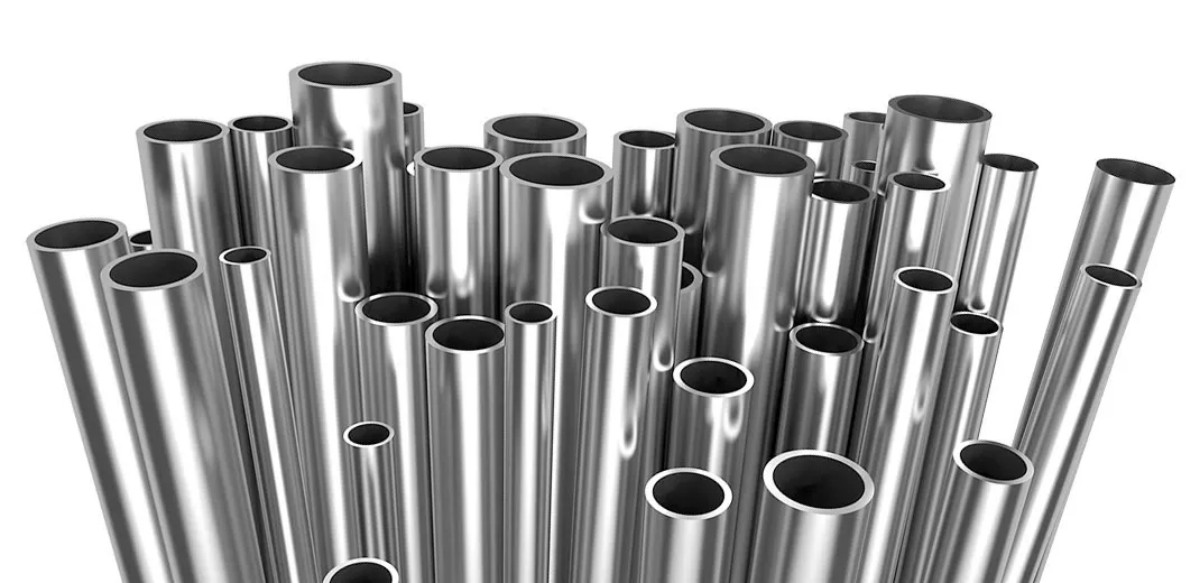

Features of our ss pipes :

1 The supply is mainly stainless steel welded pipe and stainless steel seamless pipe ;

2 The raw material can be Chinese common brand or Chinese famous brand tisco posco zpss etc ;

3 Finished welding seam is strong and clean, with good acid resistance and corrosion resistance ;

4 Strictly check the thickness, size, weight, roughness, chemical composition and mechanical properties ;

5.before delivery during production, and can provide certification or accept third party inspections as customer needs ;

6.6. Fast delivery, rich experience in exporting .

图片 5.png

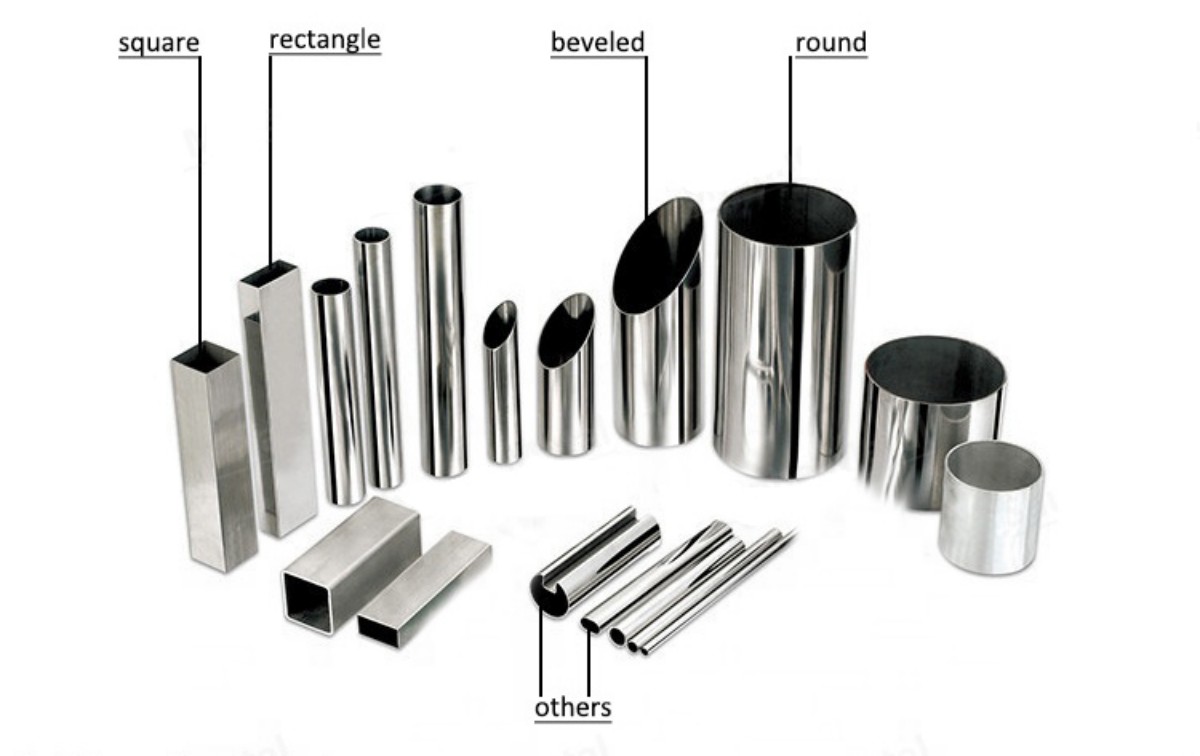

Optional Shape of SS Pipe Ends ( Customized ) :

Square / Rectangle / Beveled / Round

图片 6.png


Package

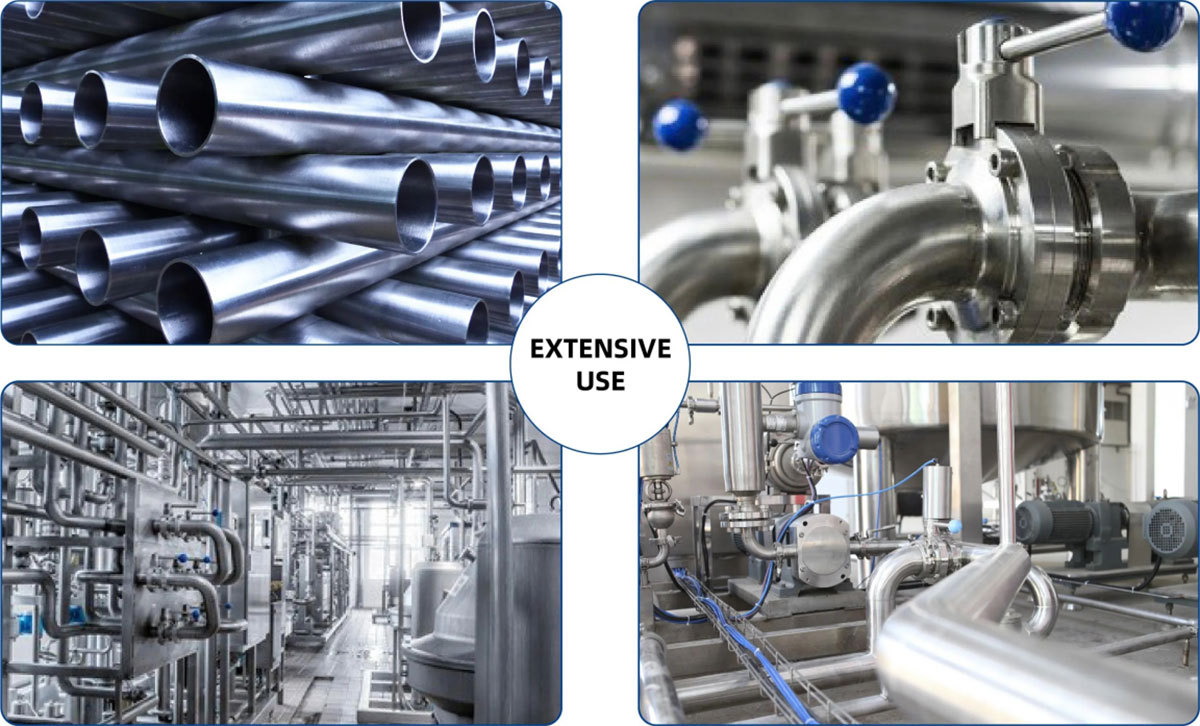

Stainless steel tubes are available in a wide variety of applications, with different technical requirements and different production methods. The outer diameter of the currently produced steel pipe ranges from 0.1 to 4500 mm and the wall thickness ranges from 0.01 to 250 mm. In order to distinguish the characteristics, the steel pipes are usually classified as follows :

1.Sanitary tubing: for food processing industry, beverage industry etc ;

2.Industiral pipe: for petroleum delivery, gas delivery, petrochemical industry, wastewater treatment, drainage system etc;

3.Mechanical pipe: handrail, railings, balustrade, hence and so on ;

4.Heat exchanger tube: condenser, boiler, super heater, evaporator and so on;
