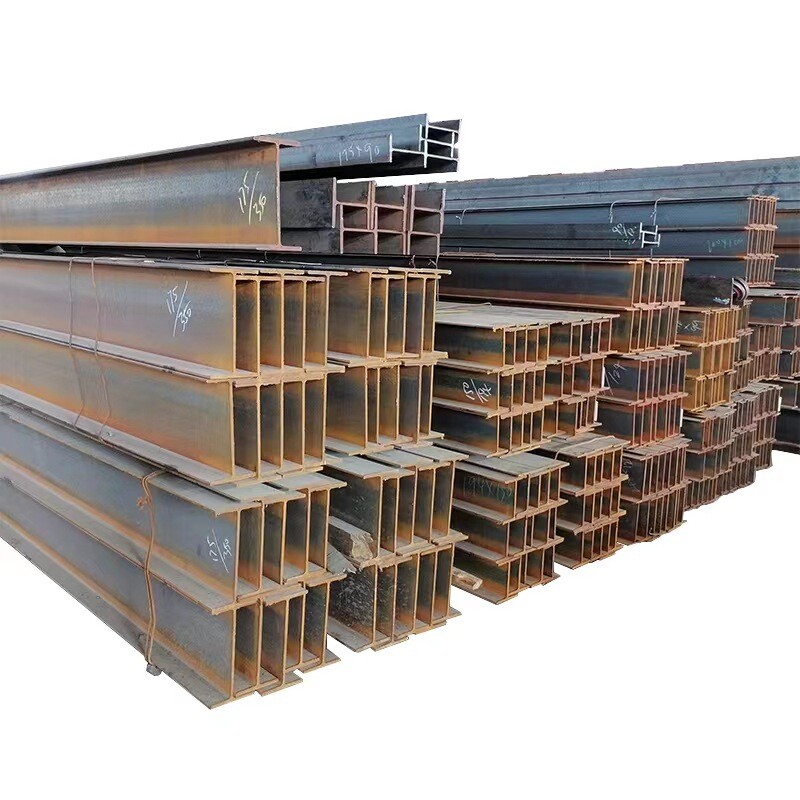

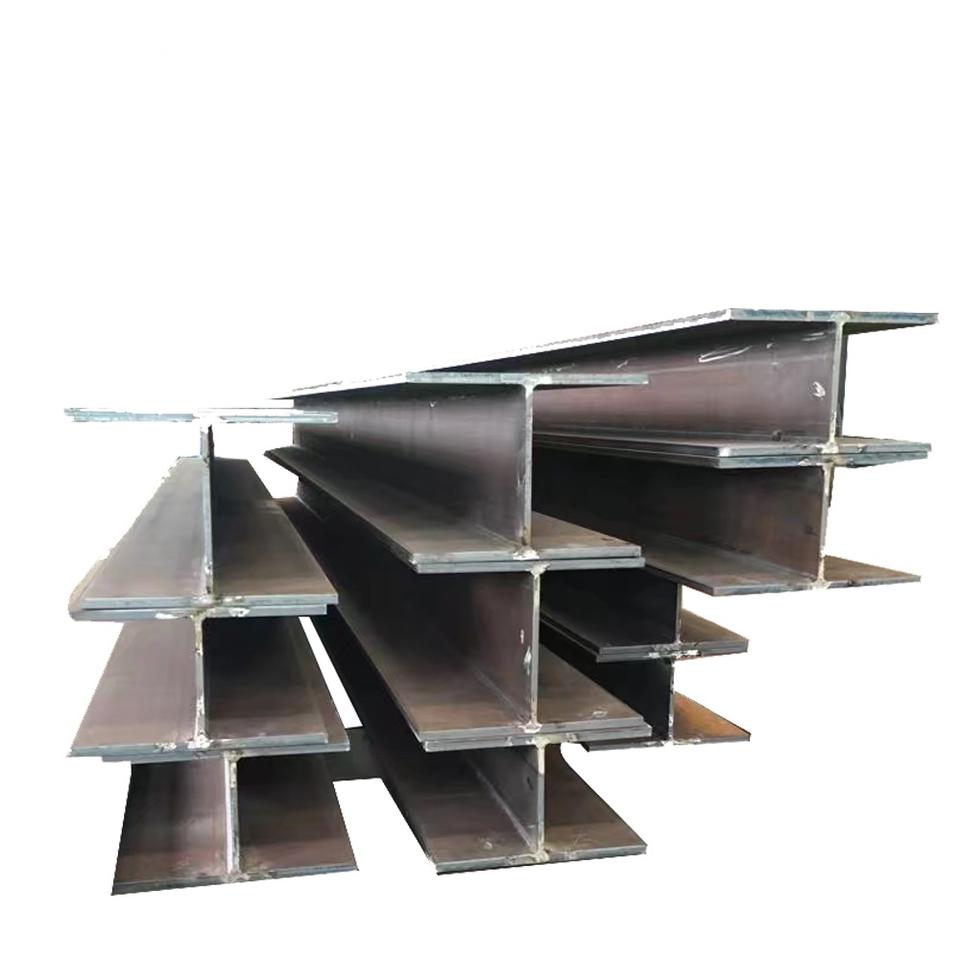

Construction Material H-Beams
H-beam steel is a type of steel beam made of rolled steel, it is named because its section is the same as the letter "H". Since all parts of H-beam steel are arranged at right angles, H-beam steel has been widely used for its advantages of strong bending resistance, simple construction, cost saving, and light structural weight.The section shape of H-beam steel is reasonable, and its mechanical properties are great. Because the inner and outer sides of the legs are parallel and the leg ends are at right angles, the welding and riveting work can be saved by 25%. With large bearing capacity and good section stability, it is commonly used for large buildings, such as factories, as well as bridges, ships, lifting, and transportation machinery, equipment foundations, supports, foundation piles, etc.
Inquiry Now →

Product Description

H-shaped steel is a high-efficiency profile with a more optimized cross-sectional area distribution and a more reasonable strength-to-weight ratio. Since all parts of the H-shaped steel are arranged at right angles, the H-shaped steel has the advantages of strong bending resistance in all directions, simple construction, cost saving and light structural weight, and has been widely used.

Product NameH beam
Size1.Web Width (H): 100-900mm
2.Flange Width (B): 100-300mm
3. Web Thickness (t1): 5-30mm
4. Flange Thickness (t2): 5-30mm
Length1m-12m, or according to your requests
StandardGB, ASTM, JIS, SUS, DIN, EN, etc.
MaterialQ235B Q345B Q420C Q460C SS400 SS540 S235 S275 S355 A36 A572 G50 G60
TechniqueHot rolled/Cold rolled
ApplicationConstruction structure
Price ItemFOB,CIF,DDU,FCA,EXW,etc.
PackingExport standard packing or according to customers' requirement
H Type Steel Size and Theoretical Weight  (GB)
Size(mm)Theoretical Weight(kg/m)Size(mm)Theoretical Weight(kg/m)Size(mm)Theoretical Weight(kg/m)
100*50*5*79.3250*125*6*929446*199*8*1265.1
100*100*6*816.9250*250*9*1471.8450*200*9*1474.9
125*60*6*813.1294*200*8*1255.8482*300*11*15110.8
125*125*6.5*923.6298*149*5.5*832488*300*11*18124.9
148*100*6*931.1340*250*9*1436.7496*199*9*1477.9
150*75*5*714300*150*6.5*993500*200*10*1688.1
150*150*7*1020.7300*300*10*1578.1582*300*12*17132.8
175*90*5*818346*174*6*941.2588*300*12*20147
175*175*7.5*1140.4350*175*7*1149.4596*199*10*1592.4
194*150*6*929.9350*350*12*19134.9600*200*11*17103.4
198*99*4.5*717.8390*300*10*16104.6700*300*13*24181.8
200*100*5.5*820.9396*199*7*1156.1800*300*14*26206.8
200*200*8*1249.9400*200*8*1365.4900*300*16*28240.1
244*175*7*1143.6400*400*13*21171.7

248*124*5*825.1440*300*11*18120.8

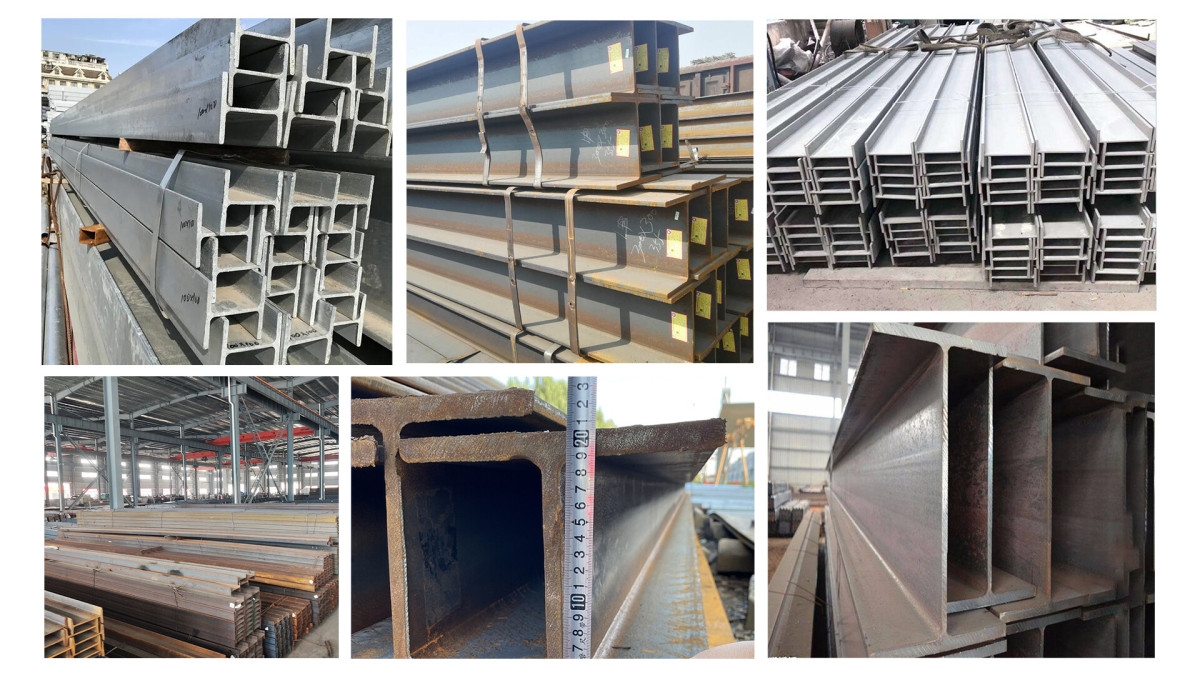

Product Display

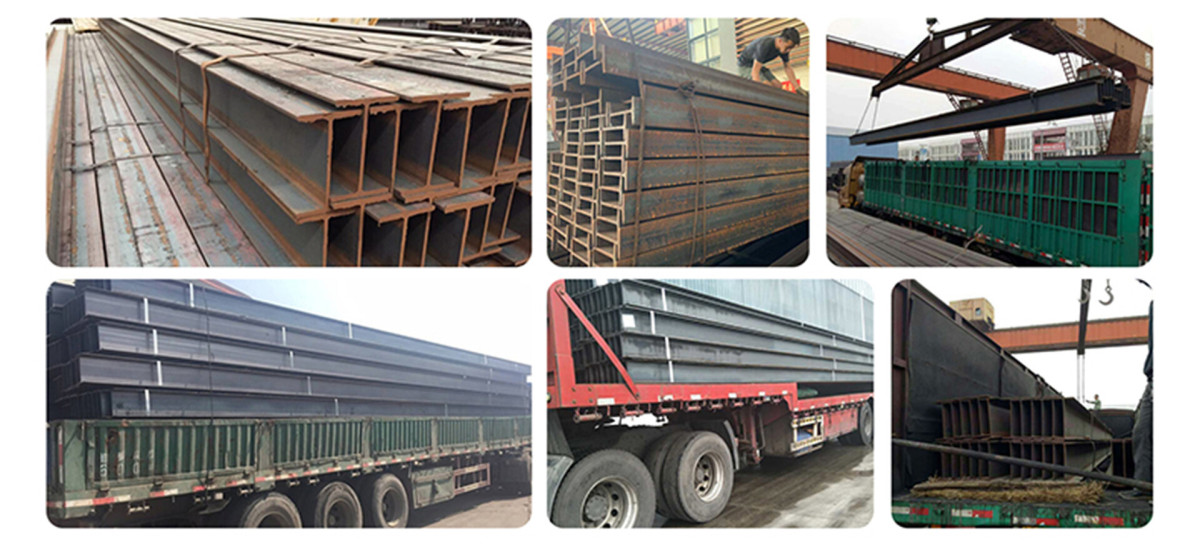

Package
